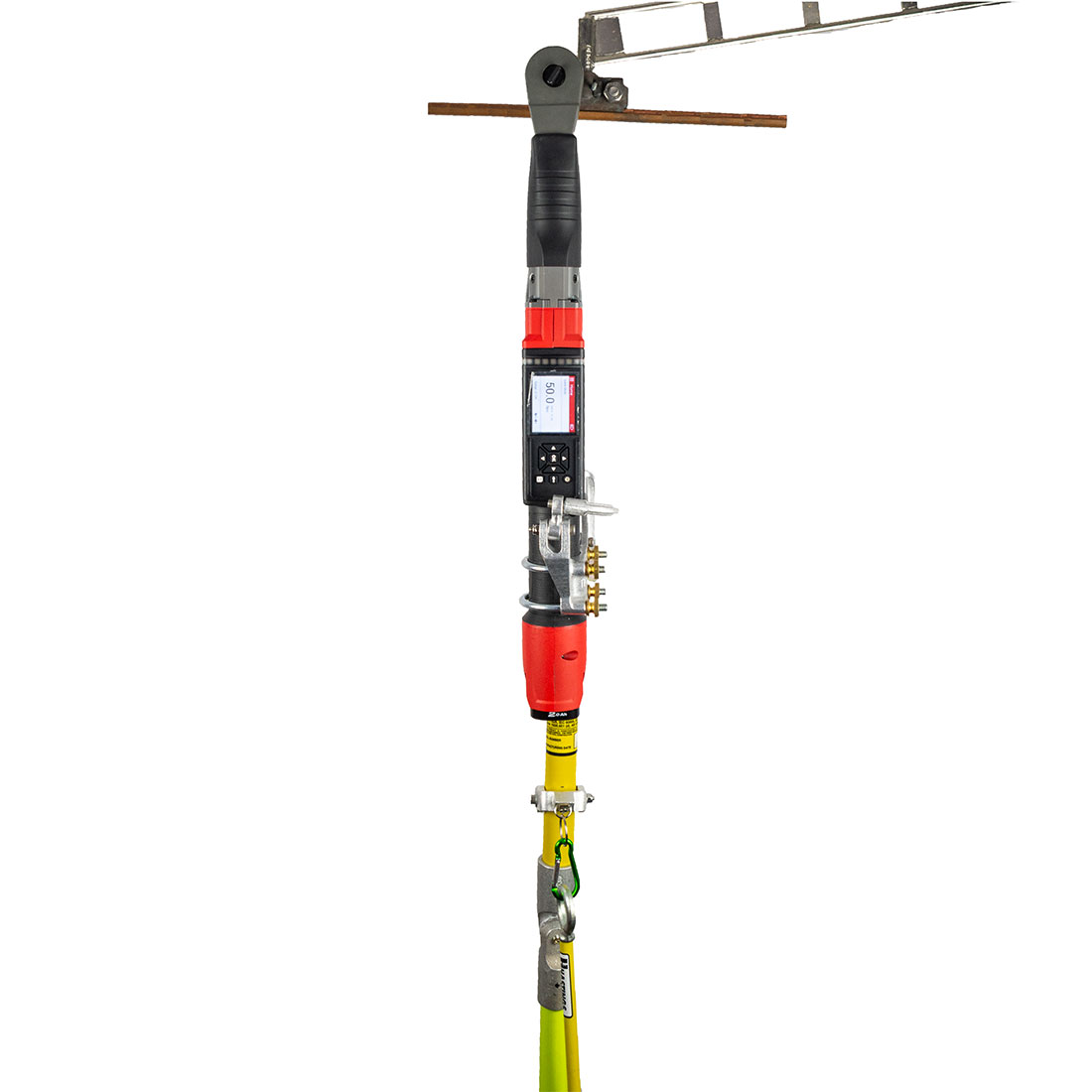

Remote Torque Wrench

Horizon have developed a tool and method for remotely installing nuts and bolts onto overhead railway line infrastructure whilst working at ground level. Using a Milwaukee ½” square drive right angle torque wrench, in combination with our unique holding and operating tool, the user is able to place a threaded bolt into the overhead line infrastructure hardware and tighten a nut to a predetermined torque to ensure each and every installation is verifiable on critical infrastructure.

Features & Benefits:

• Efficiency savings – with no requirement to have expensive, time-consuming access equipment available for short duration maintenance operations, this tool will often pay for itself the first time it is used.
• Typical applications include installing nuts and bolts that have worked loose on overhead line, small parts steel work (SPS).
• Checking installations where there is evidence of nuts working loose, or project installation user verification checks.
• Can enable teams to carry out rapid repairs, reducing the need for prolonged BTET (Block to Electric Traction).
• Milwaukee Tool’s first digital torque wrench, delivers faster installation.
• Provides 17-203Nm of torque range and accuracy within ±2% for torque critical fasteners.
• Adjustable run-down torque to control the tool’s output torque via the motor to prevent over torque.
• Measurement mode in Nm (other modes available on request).
• Durable design to withstand the most demanding jobsite environments.
• Four notification modes that the tool is reaching, meeting or exceeding the torque target (audible, LED, LCD, and vibratory).
• Integrates three Milwaukee exclusive technologies – the Powerstate brushless motor, Redlithium Ion battery pack and Redlink Plus intelligence hardware and software – which deliver outstanding power, run time and durability on the jobsite.
• Flexible battery system: works with all Milwaukee M12 battery tools.

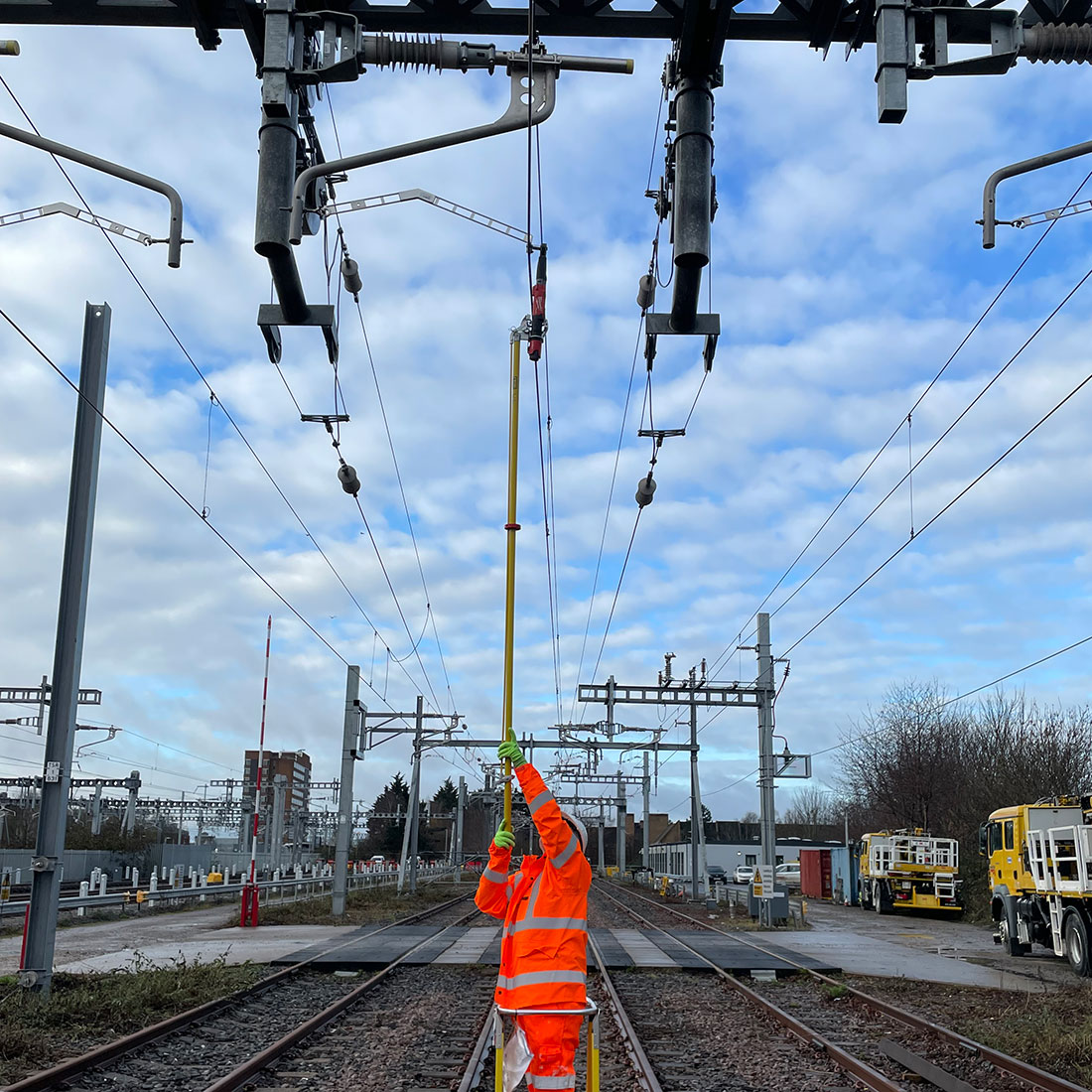

We can supply the tool on a fixed length 8ft operating tool which can be used in combination with low level access equipment or adapted to fit on to telescopic operating rods allowing installations at heights up to 30 feet. Has the potential to be used on live equipment where safety rules allow.

Milwaukee wrench has a torque rating of 17-203Nm and is easily adapted for forward and reverse operations. Memory function allows saving data that can be used to certify that installations are to specification. Large LCD screen.
