The RoLE Sign Range is a Network Rail Product Accepted residual electrical hazard and limits-of-isolation marking system, featuring highly visible reflective “Danger” signage and integrated LED warning lights for clear, reliable hazard identification on electrified railway infrastructure.
RoLE Signs
Designed for use on electrified railways for the purpose of demarking residual electrical hazards and/or limits of isolation. This range of products carries full Network Rail Product Acceptance (PA05/06991) and can be used in multiple locations.
Each product has reflective signage carrying the word “Danger”. Other wording available with agreement from Professional Head of Contact Systems. Individual lightweight blue LED lights are attached to each sign which can be set to either flash or be steady-on mode. Fitted with 2 lithium coin cell batteries, the lights will work for up to 240 hours in flash mode, or 100 hours in steady-on mode.

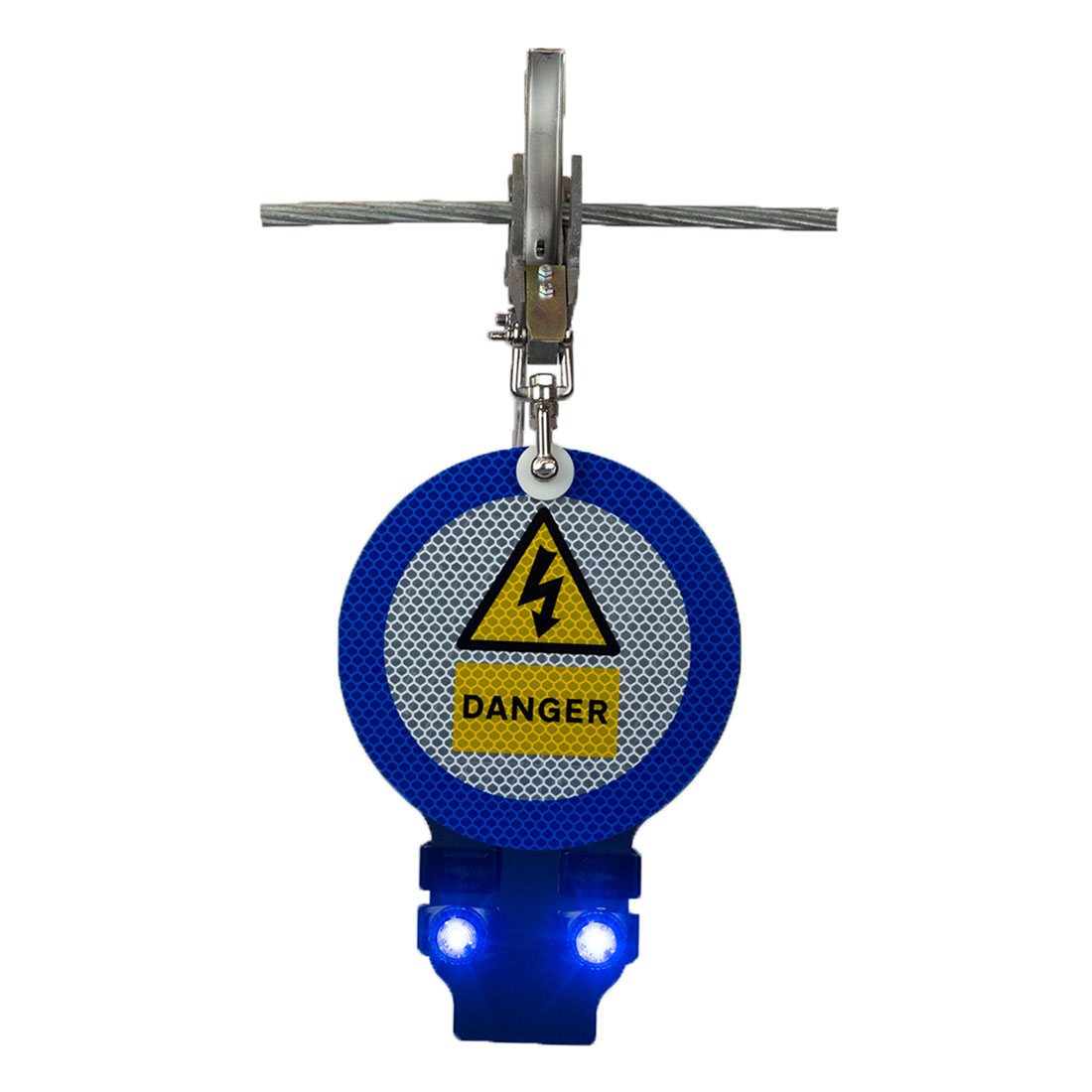

Overhead RoLE Sign
Designed to be attached directly on to an overhead line using a snap on style earthing clamp (Catu) using approved operating rods, the sign and light has a swivel connection to allow free movement.

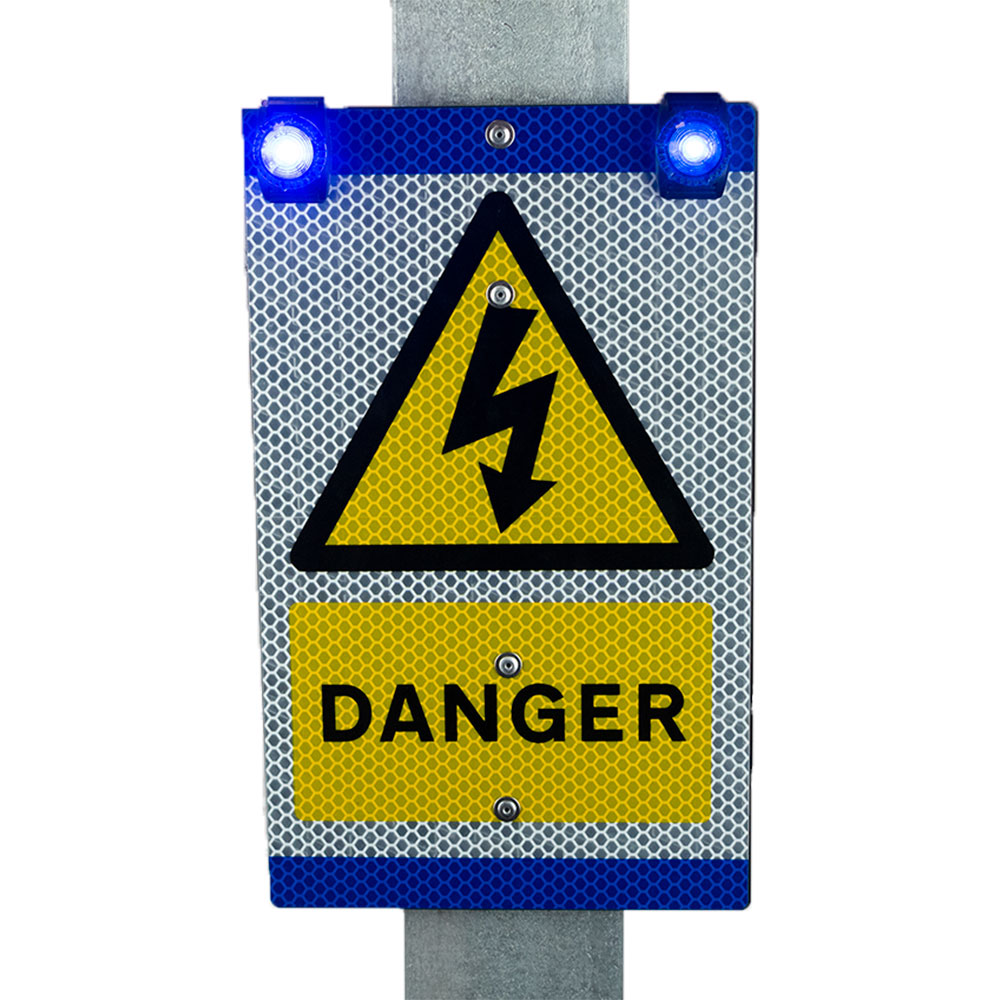

Vertical Mount RoLE Sign
Can easily be mounted on to any metallic structure with magnets attached to the back of the sign.

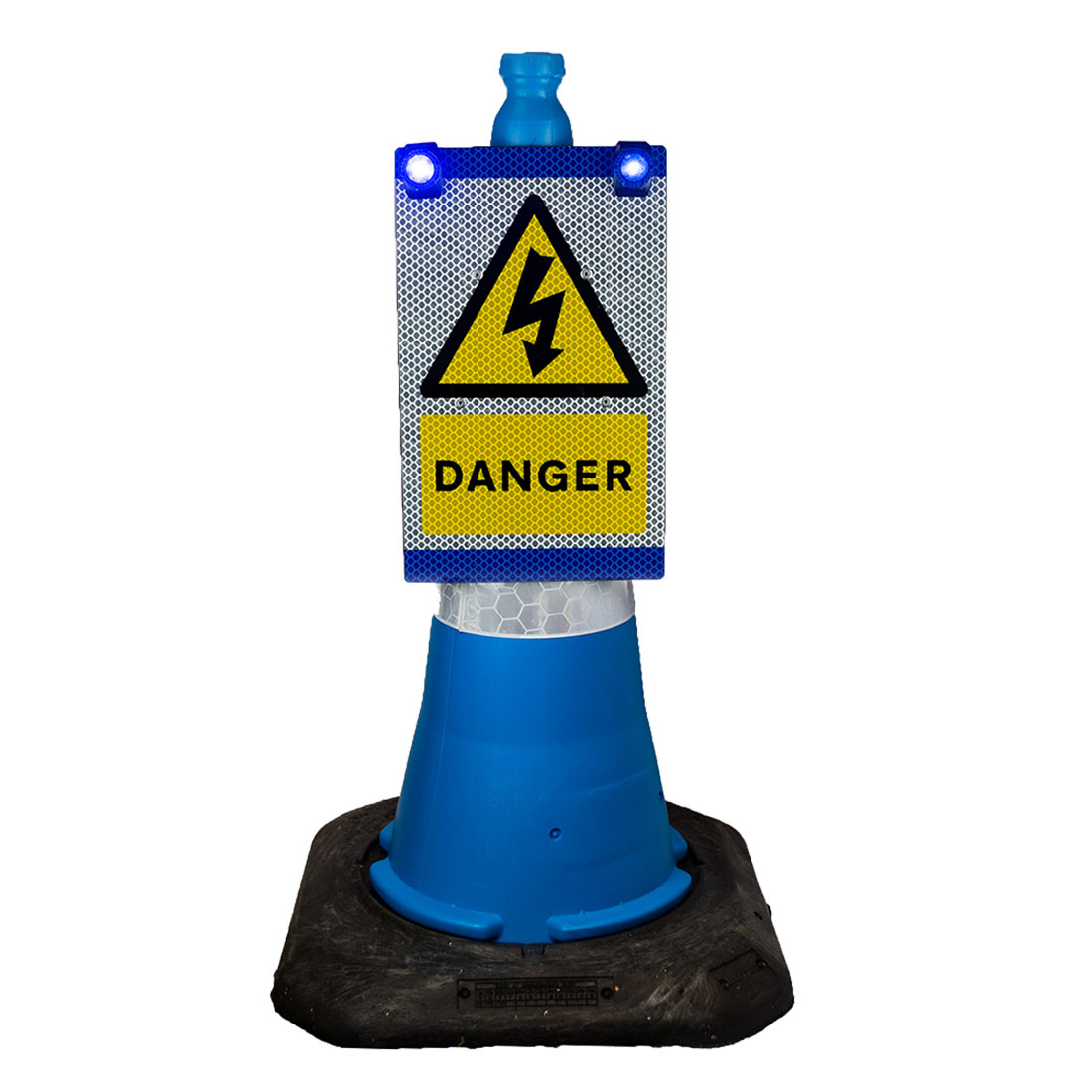

Cone Mounted RoLE Sign
Comes with a specially designed flexible sleeve on the back of the sign which slips easily over the cone. 750mm tall weighted blue/white cone can be purchased separately (CAT NO PSC750BLUE, PADS NO 0091/000513).
Technical Specifications
| CATALOGUE NUMBER | DESCRIPTION |
| NWR-DEM-OH-SIGN-AL-D | Overhead RoLE Sign – Danger |
| NWR-DEM-VM-SIGN-AL-D | Vertical Mount RoLE Sign – Danger |
| NWR-DEM-CONE-SIGN-AL-D | Cone Mounted RoLE Sign – Danger |
